軍事産業用マイクロスイッチ

WEIPENG® は、中国の軍事産業用マイクロスイッチの大手メーカーおよびサプライヤーです。スイッチに関する長年の経験を活かし、当社は競争力のある価格の製品を提供し、ヨーロッパとアメリカの市場で人気を集めています。私たちは、中国でお客様と長期にわたるパートナーシップを確立できることをうれしく思っています。

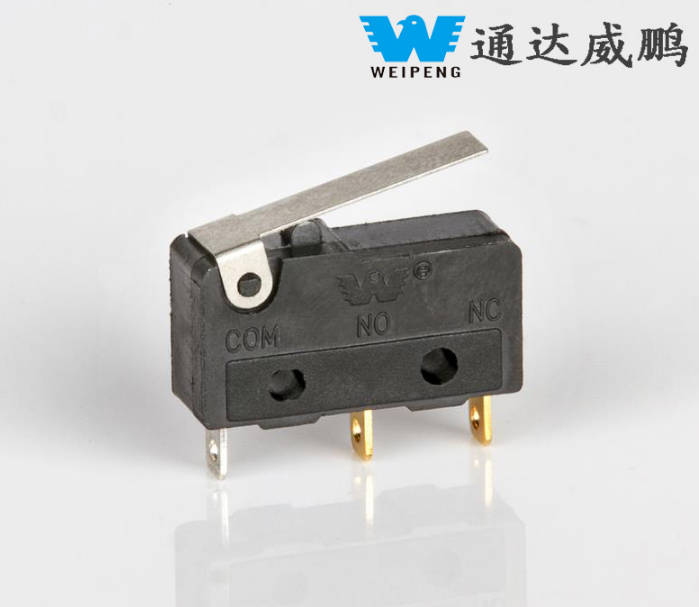

モデル:HK-04-DJ-001

お問い合わせを送信

製品説明

WEIPENG® is a professional China Long Lever Micro Switch manufacturers and suppliers, if you are looking for the best Long Lever Micro Switch with low price, consult us now!

Tongda Military Industry Micro Switch Introduction

Long Lever Micro Switch is a small contact interval and fast moving mechanism, with the specified stroke and the specified force of the switch action contact mechanism, covered by the shell, its external drive rod of a switch, because the switch contact spacing is relatively small, so the name of Long Lever Micro Switch, also called sensitive switch.
Also known as sensitive switch, quick switch. Pressure actuated quick on/off. Used for door switch in anti-theft system.

Tongda Military Industry Micro Switch Parameter (Specification)

Tongda Military Industry Micro Switch principle

The external mechanical force acts on the action reed through the transmission element (press pin, button, lever, roller, etc.). When the action reed is displaced to the critical point, instantaneous action is generated, so that the moving contact at the end of the action reed is quickly connected or disconnected from the stationary contact.
When the force on the transmission element is removed, the action reed produces reverse action force. When the reverse travel of the transmission element reaches the action critical point of the reed, the reverse action is completed instantaneously.
Micro switch contact spacing is small, short travel, according to the power, quick break. The speed of the moving contact has nothing to do with the speed of the transmission element.

Tongda Military Industry Micro Switch diagram
